Overview
Fully automatic class B front-loaded autoclave with inbuilt printer
Pricing
| MRP (list) | ₹0 |
|---|---|
| Discount | 0% |
| Offer price (rounded) | ₹0 |
| You save vs MRP | — |
Offer = MRP × (1 − discount%), rounded to whole rupees. Confirm on Teethment before purchase.
Features
Multiple Selectable Programs: Offers programs at 134°C and 121°C to meet various sterilization requirements.
Digital Display: Features a 4” large digital display showing detailed cycle parameters like temperature, pressure, and cycle time for monitoring.
Vacuum Cycles: Includes a total of 6 vacuum cycles, comprising 3 pre-sterilization, 1 post-sterilization, and 2 dry cycles.
Versatile Instrument Compatibility: Can sterilize wrapped/unwrapped, porous/non-porous, hollow, solid instruments, and even cotton swabs.
Control System: Equipped with ARM microprocessor control for precise operation.
Thermal Insulation: Special thermal wool and cloth insulation for efficient sterilization processes.
Pressure Sensor: Utilizes an imported Motorola pressure sensor for accurate control.
Inbuilt Printer: Prints detailed cycle data such as cycle time, cycle count, selected cycle, total time, and sequence of operation.
Vacuum Pump: Features an inbuilt two-headed high vacuum pump for post and pre-vacuum cycles.
Error Codes & Safety Features: Includes 13 error codes for diagnostics and automatic alarms in case of malfunctions, along with a silicon gasket to prevent air leakage.
Specialized Cycle: Offers a B+ cycle tailored for implantologists.
Large Tray Size: Accommodates any size of implant kit with its large stainless steel tray size.
Details

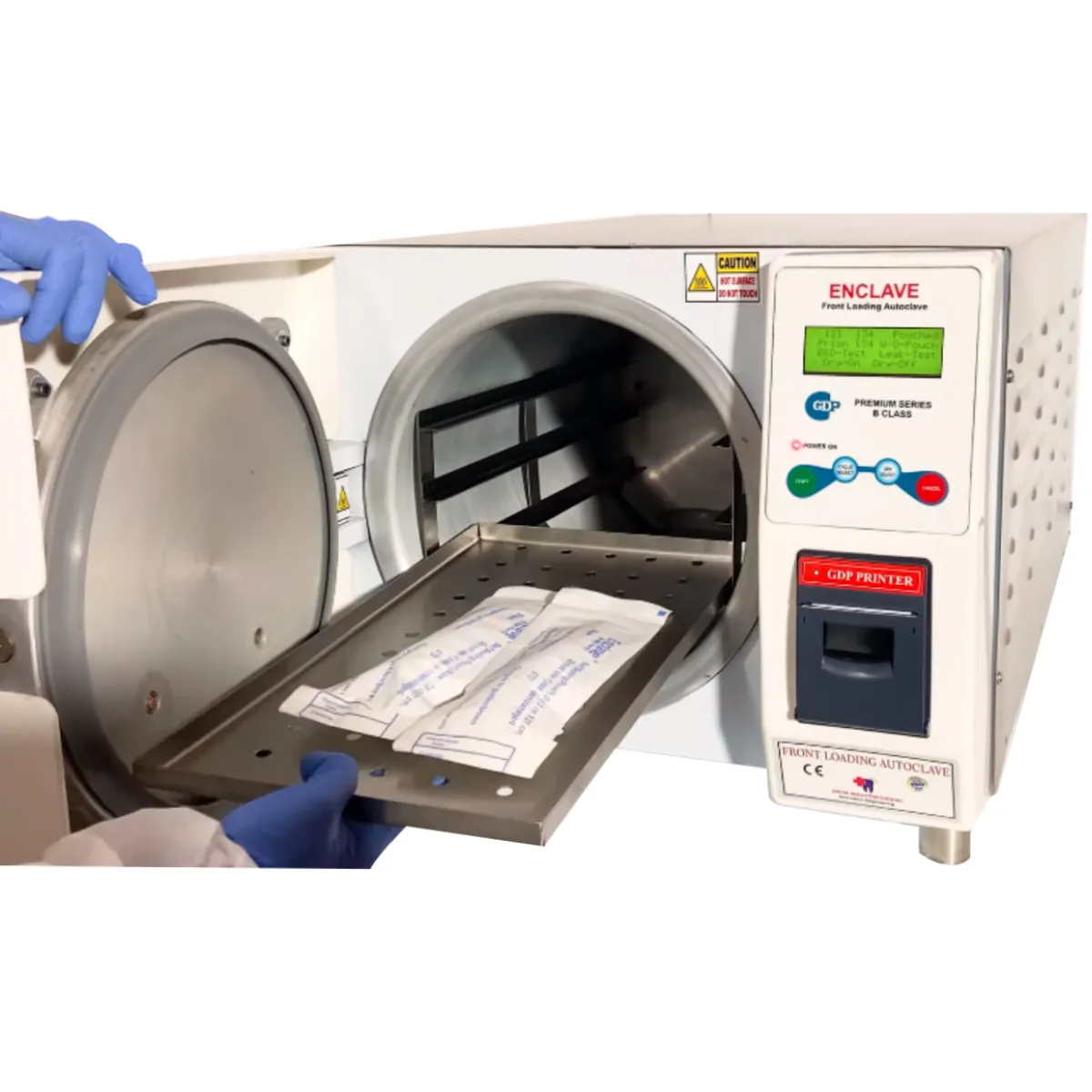

GDP Supreme Autoclave with Inbuilt Printer - 23 ltrs
The GDP Supreme Autoclave with Inbuilt Printer - 23 ltrs is a cutting-edge sterilization solution designed for dental clinics and laboratories. This autoclave offers multiple selectable programs at 134°C and 121°C to cater to various sterilization requirements. With a 4” large digital display showing detailed cycle parameters like temperature, pressure, and cycle time, users can monitor the sterilization process effectively. It features a total of 6 vacuum cycles, including pre-sterilization, post-sterilization, and dry cycles, accommodating a wide range of instruments from wrapped/unwrapped to porous/non-porous items. Equipped with an ARM microprocessor control, thermal insulation, an imported Motorola pressure sensor for precise control, and an inbuilt thermal printer for printing detailed cycle data, this autoclave ensures efficient and accurate sterilization processes. Additionally, it includes 13 error codes for diagnostic purposes and a silicon gasket to prevent air leakage, making it a comprehensive and reliable sterilization solution.
Key specifications
Width: 470mm
Height: 400mm
Depth: 585mm
Capacity: 23Ltr
Power Consumption: 2KW
Gross Weight: 35kg
Inter Chamber Size: 260x450mm
Tray: 3 Number of trays
Dimension of Tray: 215x405mm
Tray Material: Stainless Steel
Sterilization instrument:
Sterilization Time: 16 Mins wrapped solid instruments.
Fast procedure:
Sterilization Time: 6 Mins Wrapped instruments, surgical kits, phaco tubes and so on.
Quick Cycle:
Sterilization Time: 5 Mins Rubber, fabric, wrapped hollow instruments, and so on.
Prion Cycle:
Sterilization Time: 18 Mins Hollow instruments which contain a bloodthirsty virus, solid instruments, and so on.
Solid custom:
Sterilization Time: 16 Mins Rubber, fabric, wrapped hollow instruments, and so on.
Vacuum test:
Holding Time: 5 Mins Sterilizer sealing test.
Packaging
1 x Autoclave
1 x Tray Holder
1 x Drain Pipe
1 x Measuring Flask
3 x Stainless Steel Tray
Directions for use
Preparation: Ensure the autoclave is properly set up and connected to a power source.Check that the autoclave is clean and ready for use.
Loading Instruments: Place the instruments to be sterilized inside the autoclave, ensuring they are arranged properly for effective sterilization.
Setting Programs: Use the front control panel with touch-type key switches to select the appropriate program based on the type of instruments and sterilization requirements.Choose from multiple selectable programs at 134°C and 121°C as needed.
Starting the Cycle: Close the autoclave door securely. Initiate the sterilization cycle by pressing the start button.The autoclave will automatically perform pre-vacuum cycles, heating, sterilization, steam release, post-vacuum cycles, dry cycles, and more.
Monitoring: Monitor the digital display showing cycle parameters like temperature, pressure, and cycle time throughout the process.
Completion: Once the cycle is complete, wait for any necessary cooling or drying processes to finish.Open the autoclave door carefully after ensuring it is safe to do so.
Record Keeping: Utilize the inbuilt printer to print detailed cycle data after each cycle for record-keeping purposes.Ensure all necessary information like date, time, cycle details, and temperature are recorded for documentation.
Maintenance: After use, clean the autoclave as per manufacturer instructions to maintain its efficiency and longevity. Regularly check and maintain components like seals and gaskets for optimal performance.
Additional information
Country of origin: India
Manufacturer: Dibya Industries India
Warranty
Manufacturer/Importer warranty of 2 year as applicable for this product.
(NO WARRANTY on Digital Timer & Element)
Service and Warranty are handled by the manufacturer/importer directly for this product.
